PRODUCT

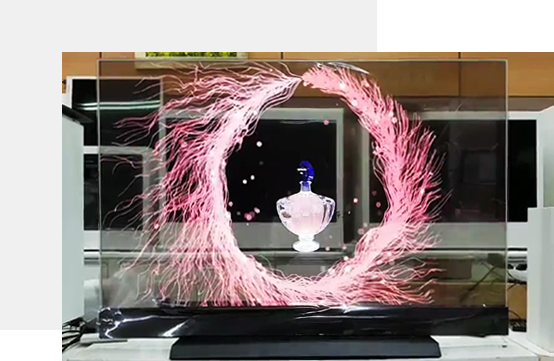

Transparent OLED is a creative and innovative display solution that provides a new visual communication experience, as an innovation beyond previous types of signage.

  • Its transparency is perfectly suited for any space and improves space efficiency.
  • The transparency itself draws attention and provides a new level of visual experience.
  • Achieves synergy by conveying overlaid information.
  • Delivers a new experience through transparency, excellent focalizing of viewer attention, and the overlaying of information on real space.

The Core Values of Transparent OLED

  • Transparency

    Spatial harmony / Spatial efficiency

  • Excellent Noticeability

    Premium branding

  • Information Overlays

    Concurrency / Compositeness

Features and Advantages of Transparent OLED

  • High Transparency
    • The product’s clarity enables users to read details or text on objects behind the display. The OLED achieves a transparency of 38% (10% for conventional LCD displays)
  • Tiling and Scaling
    • Self-light-emitting OLED technology to achieve a sophisticated and sensual design
    • Available in stand-alone or tiled designs
    • Available in horizontal, vertical, and ceiling mount options
    • Achieves spatial harmony with a truly immersive screen
  • OLED that Optimizes the Art of Light
    • Excellent picture quality that induces AR & VR effects by properly utilizing the action of light on transparent OLED
  • Superb Image Quality
    • OLED technology with accurate and stable color reproduction
    • Representation of input signals with accurate color
    • Wide viewing angle and fast screen response

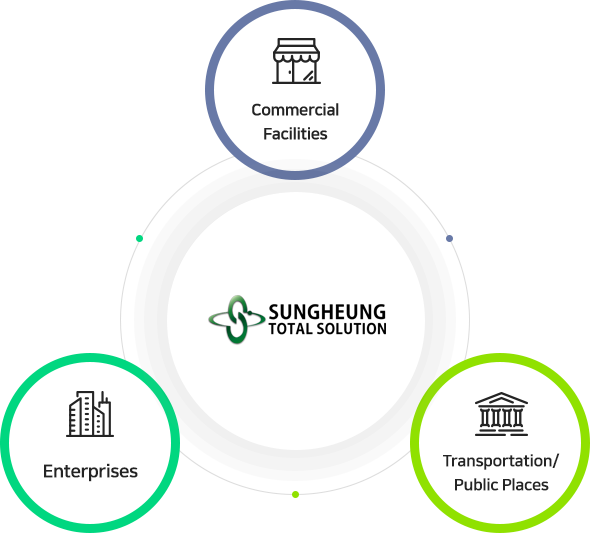

Applications of Transparent OLED

Commercial Facilities
  • Automobile showrooms
  • Indoor stores (fashion / watches / sports)
  • Restaurants
Enterprises
  • Indoor broadcasting studios / entertainment theme parks / exhibitions
  • Information (factory navigation rooms, ships, traffic control towers, etc.)
  • Architecture (smart doors, furniture, windows, etc.)
Transportation / Public Places
  • Subways (screen doors)
  • Airports (security rooms, checkpoints, immigration offices, etc.)
  • Finances
  • Museums / observatories / aquariums / hotels

Specifications of Transparent OLED Products

Specifications Details
Size 55"
Resolution 1920 x 1080
Brightness 400 / 150 nit (APL 25%/100%)
Viewing angle 178
Bezel 7.9 / 7.9 / 7.9 / 121.7 (mm, Set, T/L/R/B)
Thickness 6.64 mm (/w cabinet), 4.89mm (active area)
Transparency 38% (Panel)
Warranty 3 years
Weight Display: 12.6 Kg (Glass 7 Kg, Panel 3.1 Kg, etc 2.5 Kg)
Signage Box: 3.2 Kg
Interface HDMI(1), DP In/Out(1), IR In(1) RJ45 In/Out(1), USB(2)
RS232C In/Out(1), Audio Out(1)
Internal Memory(64GB), FFC Cable(1.6 meter)

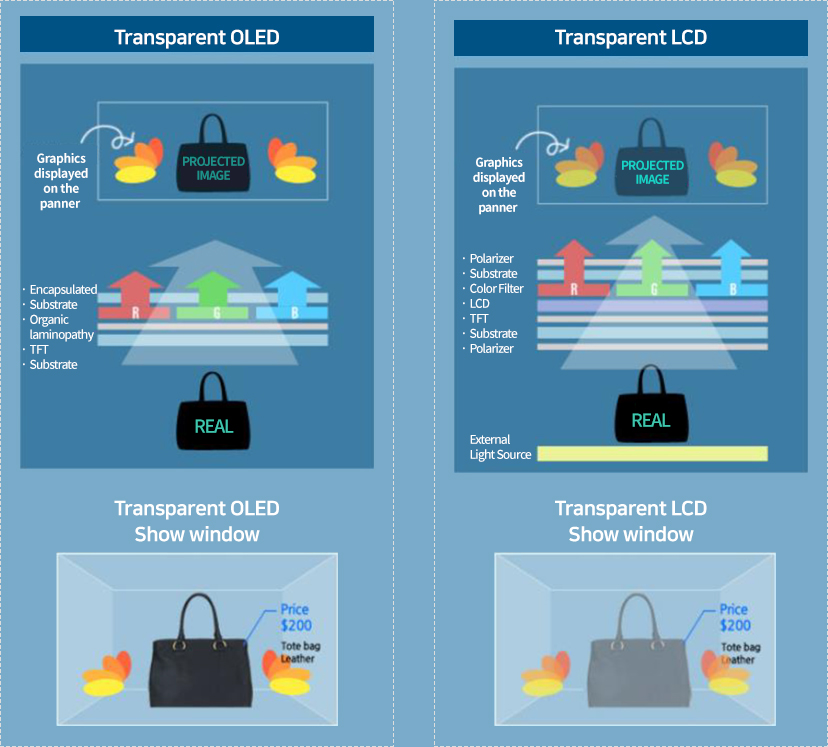

Differences between Transparent OLED and Transparent LCD
